HMMWV (Humvee) 6.5L Turbo 400A Generator to Alternator Conversion Kit
Compatibility
This kit is designed exclusively for HMMWV (Humvee) 6.5L Turbo models originally equipped with the factory 400-amp generator. It is not compatible with HMMWV models originally equipped with other output options.
Overview

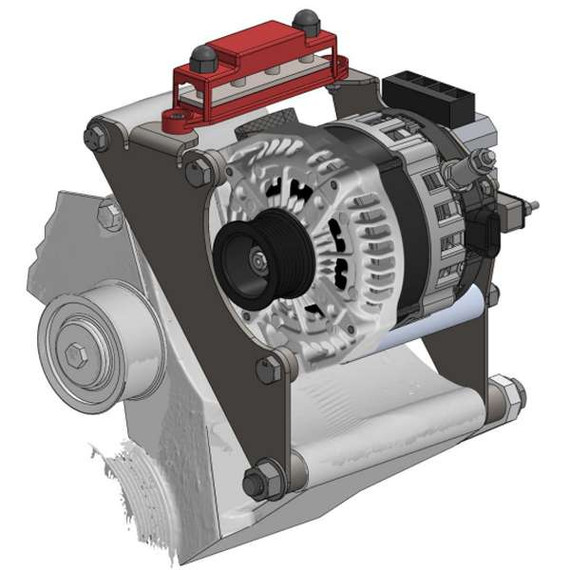

Mechman Alternators is proud to introduce our HMMWV 6.5L Turbo, 400A Generator to Alternator Conversion Kit. This complete conversion package replaces the factory 400-amp generator with a compact, 80-Amp Mechman 24V alternator using a purpose-built adapter bracket engineered specifically for military HMMWV (Humvee) applications.
Rather than simply replacing an expensive factory generator, this kit upgrades the vehicle's charging system while providing a more economical solution. The included DC-to-DC converter maintains the vehicle's 12V system and battery balancing, while the custom adapter bracket provides integrated mounting locations for both the converter and positive bus bar, resulting in a clean, professional installation.
In addition to reducing replacement costs, the conversion eliminates the bulky factory generator, reducing overall system weight and creating a cleaner engine compartment with improved accessibility around the driver's side of the engine.
Kit Includes
- Mechman 24V high-output alternator
- Custom adapter bracket
- 24V to 12V DC-to-DC converter
- Bus bars included
- Mounting hardware
- Detailed instructions
Key Features
- Complete bolt-on conversion for HMMWV 6.5L Turbo models originally equipped with the factory 400A generator. No cutting, drilling, or fabrication required.
- Includes a Mechman 24V high-output alternator, custom adapter bracket, DC-to-DC converter, positive & ground bus bar, mounting hardware, and detailed installation instructions.
- Precision-engineered adapter bracket ensures proper fit while providing integrated mounting locations for the DC-to-DC converter and positive bus bar.
- Maintains proper 24V charging while supplying regulated 12V power through the included DC-to-DC converter.
- Reduces overall system weight and improves accessibility around the driver's side of the engine.
- Replaces the costly factory 400A generator with dependable, readily serviceable Mechman charging components.
The HMMWV 400A Generator to Alternator Conversion Kit provides a practical, cost-effective alternative to replacing the factory generator while delivering a clean, professional installation using proven Mechman charging components. Purpose-built for vehicles originally equipped with the factory 400A generator, this complete kit provides everything needed to perform the conversion with confidence.
Important Notes
- Tachometer Function: On HMMWV (Humvee) models originally equipped with a factory tachometer, the OEM 400A generator provides the tachometer signal. This conversion kit does not provide a tachometer output. Therefore, the factory tachometer will not function after the conversion.
- Vehicle Wiring: Vehicle wiring is not included due to variations in HMMWV (Humvee) configurations. The required wiring will vary by application and is the responsibility of the installer.
